Friday 8 November 2013

The Syrian National Defence Force's Most Devastating Urban Combat Weapon

In late 2012, those of us tracking the munitions used in the Syrian conflict began to see the remains of an unusual munition that opposition activists claimed had been launched from Syrian government positions


The munition appeared to be a 107mm artillery rocket (as used by the widely deployed Type-63 multiple rocket launcher), with the warhead removed and replaced with a much larger DIY warhead with a simple impact fuze.  These munitions, known as Improvised Rocket Assisted Munitions (IRAMs), sacrifice range and accuracy for a massively increased payload.  As John Ismay, a former United States Navy explosives ordnance disposal officer, told the New York Times' At War blog, these IRAMs appeared to be "conceptually identical to the IRAMs used by a particular group of insurgents fighting American forces in Iraq — Kataib Hezbollah".  He goes onto the describe the use of the Iraqi IRAMs
The Iraqi IRAM was purpose-built for one thing: popping over T-walls and Hesco barriers at short ranges that prevented interception by C-RAM and creating mass casualties on-target.
Obviously, in Syria, there was no need for either side to use the munition for this purpose, and there were some who doubted the Syrian government would used improvised weapons, especially inaccurate and powerful weapons in urban areas.

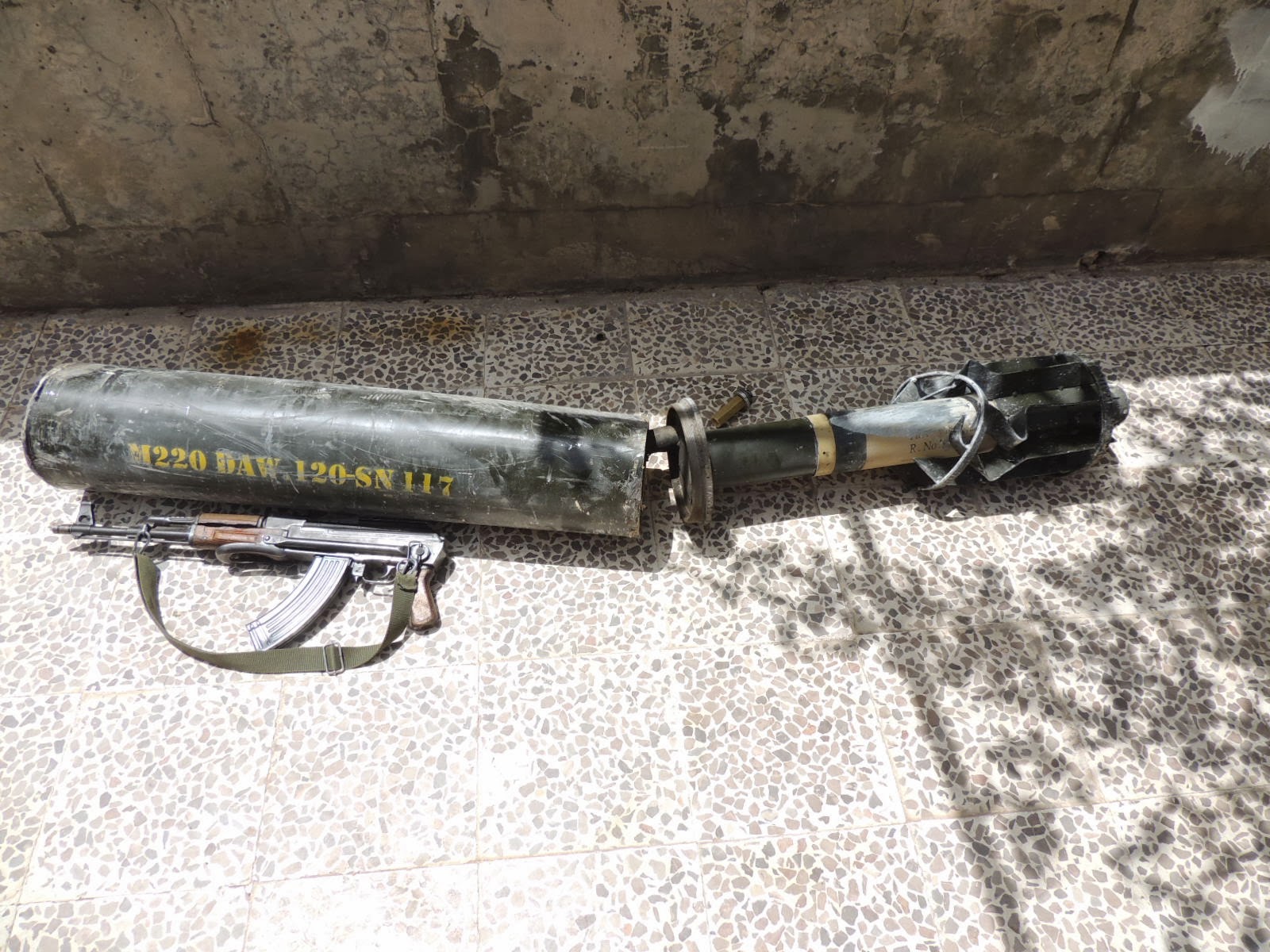

In the following months I continued to collect videos of IRAMs (see here), with the unexploded remains of the munitions showing up in Damascus, Aleppo, Homs, and elsewhere.  While it was claimed by opposition members that these munitions were fired by government forces, it wasn't until recently that an increasing body of evidence began to appear showing definite proof that the IRAMs were being used by Syrian government forces.

In late August 2013 a number of images appeared online that confirmed the munitions were being used by Syrian government forces.  First, the capture of a ammo depot in Khanasser featured this pile of IRAMs stored alongside other weapons, including IRAMs in storage crates



Around the same time Jabhat al-Nusra published images of a four-barrel IRAM launcher they claim to have captured from government forces, along with crates full of IRAMs





The final piece of proof was provided by the pro-Government Abkhazian Network News Agency (ANNA), who has rare access to the Syrian military, and regularly posts footage of the Syrian military in action on their YouTube channel.  This video showing "A brief summary of the situation in Syria for 30 August 2013" provided the final proof that the Syrian military were using IRAMs, at 1m11s


The video shows an IRAM being loaded and fired from a single barrel launcher, and was the first video showing the Syrian military using IRAMs.

One thing I was very keen to find out was how these munitions were actually being used in combat.  One report that piqued my interest was from the fighting in Qusayr in June 2013.  Colonel Abdul-Jabbar Mohammed Aqidi, at that time a senior member of the Free Syrian Army's Supreme Military Council, had travelled to Qusayr with reinforcements, and gave a very lengthy interview about his experiences.  One part of the interview caught my eye
The enemy was applying a scorched earth policy by firing Iranian vacuum bombs, which caused whole building to fall down. This was forcing the fighters to retreat to another building.
In my experience, "vacuum" is a prefix frequently used by members of the Syrian opposition to describe all kinds of powerful explosive weapons, and that description reminded me of something else that had emerged in Qusayr.  Josh Wood, a journalist who met opposition fighters who had fought in Qusayr, sent me a gallery of photographs provided to him by the fighters he spoke to, showing a munition they claimed was being used by Hezbollah


He told me that according to the opposition fighters
This weapon was used by Hezbollah forces in Qusayr.  He described them as 107mm rockets fitted to something with a higher payload, with the 107mm propelling everything. He said the max range on these was about 1 km, but most of the time they were simply fired across the street horizontally at extremely close range.  By his description, one of these could do significant damage to a small house.  He said that these rockets really helped Hezbollah shift the tide in parts of that front-line.
At the time there was no more evidence of these munitions being used in Qusayr, and no way to confirm the story of the opposition fighters about how they were used.

This week, a video by the Syrian National Defence Force was posted online, showing fighting in Barzeh, north Damascus, with footage of a single barrel IRAM launcher being used at 1m17s


What's interesting about this is the launch tube is horizontal to the ground, suggesting it's being used for direct fire, not indirect fire, as in Iraq


The launch footage is then followed by footage showing the IRAMs hitting multiple targets.  It appears, as described by the opposition fighters in Qusayr, that these munitions are being used for devastating effect against occupied buildings only hundreds of feet away from the launch site.  It's not hard to imagine how devastating these munitions are, and difficult how (if not impossible) these munitions would be to defend against in an urban combat situation.

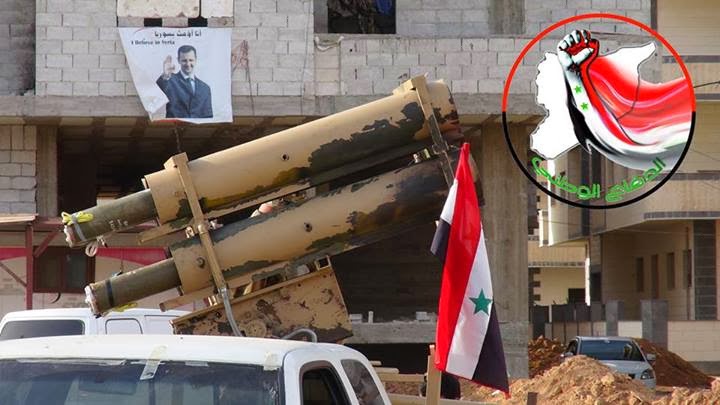

Reviewing the National Defence Force's Facebook page, it appears they don't only have access to the single barrel launchers, but also the type of truck mounted launchers Jabhat al-Nusra claimed to have captured

Source
Source
Source
These aren't the only powerful explosive weapons the NDF has been provided with, with videos showing them using the launchers linked to the August 21st attack being posted online recently (albeit using the explosive type of munition), and the use of IRAMs in urban combat would seem to give them a significant advantage over opposition forces.  This goes some way to explain some of the more unusual reports from the opposition of the weapons used against them, and it seems these weapons will continue to be a popular choice for government forces.

You can contact the author on Twitter @brown_moses or by email at brownmoses@gmail.com.

32 comments:

  1. "Inaccurate" ??!!

    These are close quarters siege weapons best for use across the street, not across the city.

    With the single tube direct fire launcher, as a former infantryman I'd give my eye-teeth for this amount of firepower in such a small bundle and not having to rely on battalion, Brigade, or Divisional arty support.

    In the indirect fire mode they will be similar to mortars but with a lot less range.

    The SAA has a winner here.

    ReplyDelete
    Replies
    1. The IRAM that uses the 107mm rocket motor is kind of old, old news but we can still draw some possible conclusions from its use in Syria by Government forces or whoever may capture this weapon system. There seems to be a trend where we have Mil-Spec type, mass produced, state manufactured rocket motors being mated to extremely large warheads that are not of Mil-Spec construction. These systems (warhead/rocket motor assembled together) are primarily being used in a short range IRAM type application. The main trend seems to be;


      1. IRAM, 107mm rocket motor propelled, warhead; Rocket Motor=Mil-Spec construction , state manufactured 107mm rocket motor. Warhead and Rocket Motor to warhead adapter=Not Mil-Spec construction/manufactured locally.



      2. UMLACA Small (IRAM); Rocket Motor=Mil-Spec construction, state manufactured 122mm rocket motor or close variant. Warhead and Rocket Motor to warhead adapter=Not Mil-Spec construction/manufactured locally.


      3. UMLACA Large (IRAM); Rocket Motor=Most likely - Mil-Spec construction, state manufactured 220mm or 240mm or close variant. Warhead and Rocket Motor to warhead adapter=Not Mil-Spec construction/manufactured locally.


      Note; Thin skinned, large warheads contain much larger Net Explosive Weight (NEW), per warhead, then the typical thick skinned warhead and are very devastating in an urban environment. Example; HEP/HESH/SQUASH warheads were primarily developed for there, armor defeating, spalling effect. Later it was discovered that these same thin skinned high NEW warheads were extremely devastating in close range, direct fire applications, in urban type target rich settings.

      Delete
    2. Ahrar Al-Sham (Takfiris) are using their own version of oversized warhead rockets.

      http://www.liveleak.com/view?i=a24_1383931080

      Delete
    3. Re Ahrar al Sham IRAM.

      Their version of IRAM has a CEP identical to its range. Their target is town sized. They have no military value other than terror.

      In comparison the Hezbollah IRAM and the Syrian Eskimo-107 are militarily useful weapons that can be fired at particular targets e.g. a specific building.

      Delete
    4. DIY rockets with larger warheads of that type have been used by the opposition since late 2012, Kristen Chick mentions them in this CSM article she wrote back in November 2012, on page two
      http://www.csmonitor.com/World/Middle-East/2012/1116/Where-Syria-s-opposition-groups-get-their-rockets-video

      Delete
    5. what is purpose of ESKIMO-107????

      Delete
  2. I have found pic of early prototype with scientists collecting flight data. Bottom of page right side
    http://www.russianspaceweb.com/rockets_pre20th_cent.html

    ReplyDelete
  3. Press TV made some footages at Al Qusayr, and later made a documentaary movie too. If you not yet seen it you can check it here: http://www.youtube.com/watch?v=kbJGZB9lNRQ

    You can find one IRAM (the 4 barrel) at 1:47, but there could be more.

    ReplyDelete
  4. "...Rocket Motor=Mil-Spec construction..."

    There really isn't a need to call out any 107, 122 or 220mm rocket motor as 'Mil-spec' (groan), 'military', state-produced, mass-produced or manufactured because THEY ALL ARE.

    Nobody makes rocket motors in their garage that are *the least bit* relevant here. Just sayin'.

    The 107's in Syria are nearly always Iranian(*) or Chinese. The only marginally interesting detail would be if they were NOT. Nearly everyone in the Middle East has them. Elaborate 'launching systems' are optional for either the original warhead or IRAM version. A rock or piece of pipe work equally well and have nearly the same accuracy. (*) Tinfoil-hat factoid: English printing on Iranian 107 is most likely fake. An unnamed ME country is known to regularly do this in order to demonize Iran to the west. Iran hasn't exported rockets to english-speaking countries in... well, never.

    Hezbollah loves these things, but John Ismay's following comment is kind of strange:

    "...The Iraqi IRAM was purpose-built for one thing: popping over T-walls and Hesco barriers at short ranges that prevented interception by C-RAM and creating mass casualties on-target..."

    No doubt they are frequently used for that purpose in Iraq and Afghanistan, but they have been around a lot longer than the west's C-RAMs. I would suggest they are purpose-built for a slightly different reason: they're the easiest and cheapest way for Hezbollah (or anyone else in the ME) to lob 100 lbs. of C-4 out half-a-kilometer or so vs. the few pound payload in the normal 107mm rocket.

    Steal a garbage truck, and build your own 14-tube IRAM MRLS:

    https://archive.org/details/HezbollahBrigadesnewShotsAndLongerVideoForTheSpecialIram-flyingIeds_710

    The C-RAM systems are effective against a limited number of simultaneous threats, but offer little protection from mass bombardment:

    http://www.dailymotion.com/video/xjoggv_brand-new-hezbollah-brigades-iram-attack-vs-an-american-base-in-wasit-29-06-2011_news

    ReplyDelete
    Replies
    1. Quote " Nobody makes rocket motors in their garage that are *the least bit* relevant here. Just sayin".

      Paveway Mk IV; First let me say thank you and next where have you been the last two months, I could of used some help in convincing folks of exactly what you stated. I am glad that finally, someone is starting get it.

      Delete
    2. Anything I know about the tools of death used in the Middle East come from the most heavily censored and sanitized war in U.S. history: the Iraq war. If you're a U.S. citizen and post too many uncomfortable facts about *that* atrocity, then they'll eventually find your body in a dumpster in some New Jersey landfill.

      Delete
    3. come on, please, not so much censored to keep to the point and eliminated and thrown in a garbage heap ... here in the Balkans we had a horrible and unimaginable crimes war machines designed for grinding meat, but it's not a big mystery that people end up in dump because

      Delete
  5. I do not understand what effect you want to achieve with this weapon because apart from the psychological effect on civilians nothing else this weapon can do, one mortar mines of 120 mm is much more efficient and destructive in my opinion, especially missiles from vMRLS, however much stronger psychologically effect has a single salvo from MMRLS or gunfire from Shilka, I do not jsano what we want to achieve these weapons unless it is not in their bracket warheads of a nerve agent

    ReplyDelete
    Replies
    1. It's an infantry weapon and only part-time artillery so it doesn't equate to heavy mortars or howitzers or MRLS - which are artillery weapons.

      It works at infantry fighting distances typically up to 500m but often closer.

      Think of it as the heavy missile equivalent of a recoilless rifle but that has been designed for attacking structures.

      Delete
    2. like flametrover or simillar weapon but with strong destructive power against bunkers...is that correct C. Wood

      Delete
    3. perhaps think of it as a mine on a rocket?

      Instead of sending an engineer in with an explosive mine to blow up a building you fire the explosive mine at the building with a short-range rocket.

      Delete
    4. Strictly speaking, it was called a Petard, and one of the dangers was "being hoist with his own petard". In WW2, the Royal Engineers had a Petard Gun on a modified Churchill tank which did the same sort of thing:

      http://www.strijdbewijs.nl/tanks/churchill/speceng.htm

      If you scroll down till you see one of the "Flying Dustbin" munitions, you'll see how that connects with these rocket munitions!

      The Petard mortar/gun was actually a spigot gun, which concept was used on everything from the PIAT projector at the small end, up to the LIMBO depth charge gun at the other.

      Delete
    5. "...I do not understand what effect you want to achieve with this weapon..."

      Most of the thermobaric warheads used today are to kill people inside fortified structures. They use an intentionally extended blast wave that will easily penetrate into building openings and travel a greater distance through rooms, hallways and other passages. Damage caused to the structure is coincidental - they're not trying to blast through a concrete wall to get to the person on the other side. Fragmentation effects are also secondary. The overpressure from the blast is the primary lethal effect.

      For a relatively small thermobaric warhead (small-caliber mortar, shoulder-fired rocket), the blast effect is limited to enemy in a room or behind a relatively low obstacle. For larger warheads - like the 350mm 55L cans - a target would be more like the side of a multi-story structure. You could get a blast wave of several atmospheres beyond a couple hundred meters in the open. That blast wave would also be lethal to anyone in a windowed room on that side of a six-story building, including many of those further inside the building, in the basement or on the roof.

      If you wanted to do the same thing using an RPG, you would have to fire one through every facing window at the same time - maybe 50 for a six-story building. Even then, many people in the interior rooms, around a corner or in hallways might survive.

      "...because apart from the psychological effect on civilians..."

      Not the intent - large thermobarics are intended to kill everyone inside a fortified structure, not to scare people. If the SAA is being sniped from a bombed-out building in a ruined part of the city, they probably don't think there are any civilians there.

      "...one mortar mines of 120 mm is much more efficient and destructive in my opinion..."

      If you want to demolish the entire building floor by floor to clear it of people. I think they tried that the last year or so by the looks of many of those buildings. It's impractical to clear that much building (which may only have a few snipers and RPGs) by lobbing 120mm shells through the roof all day.

      Any MRLS would also do the job, but you would be doing almost the same thing from the side. Blasting the building to bits to make sure no enemy are still inside. You can't do that if you have 150 buildings to clear in a single neighborhood.

      Thermobaric weapons are the ideal weapons for this exact kind of conflict: well-concealed insurgents scattered among a lot of bombed-out multi-story concrete structures controlling the area by denial through their snipers. Attacking key structures with thermobarics lets you put your ground troops in the building to clear it relatively quickly.

      I would argue that the SAA wouldn't waste cannister-payload rockets on CW agents because they're just not effective for urban warfare - the negatives outweigh any tactical benefits. You would be far better off using the rockets to deliver FAE/thermobaric payloads which *do* serve a purpose that existing weapons (large-caliber mortars, artillery or rockets) do not provide. There are thermobaric versions of those, but they are relatively rare and not known to be part of Assad's arsenal.

      Delete
  6. I. emembred now in movie Pvt Ryan Us soldiers they used a rod filled with explosives that were pushed under the barbed wire to the German bunkers and then detonate them with a wick and the rods then destroy obstacles and bunkers...i I forgot the name of that weapon

    ReplyDelete
    Replies
    1. yeah..something like Bangalore or else

      Delete
    2. M1A1 Bangalore Torpedo

      https://www.youtube.com/watch?v=6qFtlnw1L_Y

      http://www.wwiiboxes.co.uk/mysite2/images/Bangalore-Box-1.jpg

      Delete
    3. A more modern version of the Bangalore Torpedo is the MK8 explosive hose and the M58 MICLIC. These two system are still being used today.

      Delete
  7. we at war in Croatia 1991-1995 we used Tromblon mines against serb Bunkers and cumulative anti-tank hand grenades, and that was enough to be cast out, and that they inflict on victims, but use something like this massively against the structures which contain the enemy .. hm ... then the enemy is obviously very dangerous and well hidden

    ReplyDelete
    Replies
    1. Never heard of Tromblon mines - interesting. First page that came back was a Serb site!

      http://www.mycity-military.com/Pesadijsko-naoruzanje-municija-i-oprema/tromblonska-mina-vs-40mm-granata_3.html

      http://www.mycity-military.com/Pesadijsko-naoruzanje-municija-i-oprema/Tromblonske-mine_3.html#p605505

      Delete
  8. I remember the U.S. troops in the siege house bunkers where they were hidden sons of Saddam Hussein used TOW missiles in Iraq

    ReplyDelete
  9. ))) wtf u talking about, helping with what and what Brits U saw here, I'm from Croatia

    ReplyDelete
  10. I suspect that these weapons and there is not a large effect, and not intimidate the enemy on both sides

    ReplyDelete
  11. The Syrian opposition has a long track record of using incorrect language to describe munitions ("barrel bombs" is an alternative example), and I've seen multiple examples of various high explosive weaponry being described as "vacuum bombs", not just ODABs.

    ReplyDelete
  12. Lob bombs are not new, at least 45 years old or probably a lot older. The VC lobbed one at our company CP in 1968 on Go Noi Island. I still distinctly remember the taste of the dirt that I kissed when I hugged the ground that night. As I recall they also used them at several other places, Hill 55 for one. I forget where else.

    ReplyDelete
    Replies
    1. In WW1, a "two inch trench mortar" actually lobbed a football-sized globe of explosive on the end of a two inch diameter stick that went into the mortar. Range was a couple of hundred yards at most. The propellent was ignited by a .303" blank, there were one ounce cordite propellent increments, with a black powder booster to make sure these ignited consistently. The firing mechanism literally was the action of a .303" SMLE No3, attached to 2" mortar tube.

      Sounds like a clumsy, old fashioned idea, till you see:

      http://en.wikipedia.org/wiki/Rifleman%27s_Assault_Weapon

      Which is a remarkably similar concept from the 1990s. The only real difference is that the 5.56 mm blank ignites a small rocket.

      Delete
  13. Me ha gustado mucho tu blog y te doy la enhorabuena por el trabajo que haces con el. Es estupendo.
    Un saludo
    Micky

    http://ejerciciofisicoybienestar.blogspot.com.es/

    http://motorafons.blogspot.com.es/

    ReplyDelete
  14. Against a concrete structure, what makes the biggest effect is the amount of surface area the explosive has in contact with the structure, to couple a shockwave into it.

    So I think that these huge munitions will do the target structure about as much harm as the 290mm Petard rounds of WW2 (flying dustbins) but they will do very much more damage to surrounding structures and people by blast. The Petard round amounted really to the tip of one of these monsters, and that's the only bit of them that actually couples energy into the structure that is directly struck.

    ReplyDelete
